Vector Analyzer Vs Spectrum Analyzer
Imagine a bustling radio frequency (RF) lab, humming with the quiet whir of electronics. Technicians huddle around screens displaying intricate waveforms, their eyes scanning for subtle anomalies. Two key instruments stand out in this symphony of science: the Vector Network Analyzer (VNA) and the Spectrum Analyzer (SA). Each one offers a unique window into the world of RF signals, yet their roles, while complementary, are distinctly different.
The core distinction lies in what each analyzer measures. This article demystifies these two essential tools, explaining their individual strengths and applications, illustrating why both are indispensable for engineers working with RF and microwave technology.
Understanding the Spectrum Analyzer
The Spectrum Analyzer is the signal-detecting instrument that measures the magnitude of an input signal versus frequency within the full frequency range of the instrument. Think of it as a highly sensitive radio receiver, constantly scanning the frequency spectrum and displaying the power of each signal it detects.
It essentially provides a visual representation of the power distribution of a signal across a specific frequency range. This allows you to quickly identify the presence of signals, measure their amplitudes, and determine their frequencies.
Originally developed in the mid-20th century for analyzing radar signals, Spectrum Analyzers have evolved significantly. Modern instruments boast wider bandwidths, faster sweep speeds, and sophisticated signal processing capabilities.
Applications of Spectrum Analyzers
Their primary function is to identify and analyze unwanted signals and spurious emissions which could degrade the performance of a device or system. Spectrum Analyzers find applications in various fields, including telecommunications, aerospace, and medical imaging.
For example, a technician might use a Spectrum Analyzer to verify that a cellular base station is transmitting at the correct frequencies and power levels, or to identify sources of interference that are disrupting wireless communications.
They are also crucial in ensuring compliance with regulatory standards by verifying that equipment does not emit excessive electromagnetic radiation.
Delving into the Vector Network Analyzer

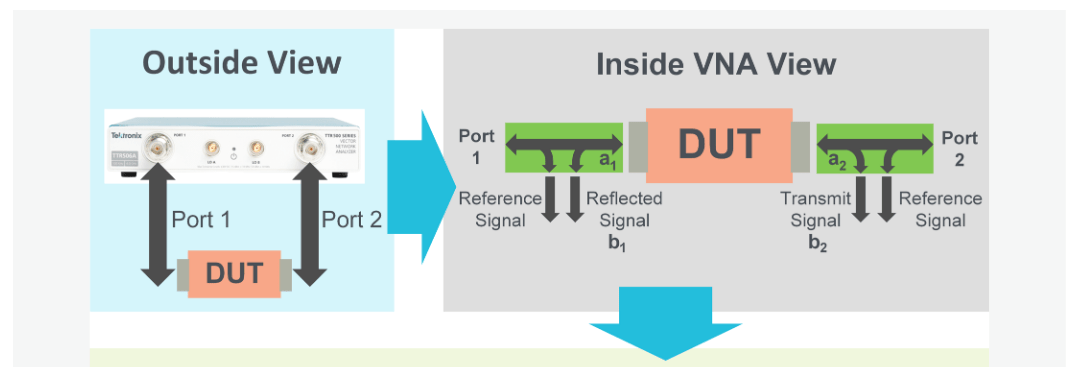

The Vector Network Analyzer is an instrument that measures the network parameters of electrical networks. This instrument transmits a signal and then analyzes both the magnitude and phase of the reflected and transmitted signals.
Unlike the Spectrum Analyzer, which primarily focuses on signal amplitude, the VNA provides a more comprehensive characterization of a device or network, including its impedance, reflection coefficient, and transmission characteristics.
The VNA emerged later than the Spectrum Analyzer, becoming widely available in the late 20th century. The instrument utilizes sophisticated signal processing techniques to extract vector information (magnitude and phase) from the measured signals.
Applications of Vector Network Analyzers
VNAs are essential for designing and testing RF components like filters, amplifiers, and antennas. They can accurately measure the impedance matching of an antenna, allowing engineers to optimize its performance for maximum signal transmission.
Furthermore, VNAs are used to characterize the performance of high-speed digital interconnects, ensuring signal integrity in complex electronic systems. Consider its utilization for measuring the S-parameters (scattering parameters) of a filter, which describe how the filter affects the amplitude and phase of signals passing through it.
According to Rohde & Schwarz, a leading manufacturer of test and measurement equipment, VNAs are becoming increasingly important in fields such as 5G and automotive radar, where precise characterization of RF components is crucial for optimal performance.

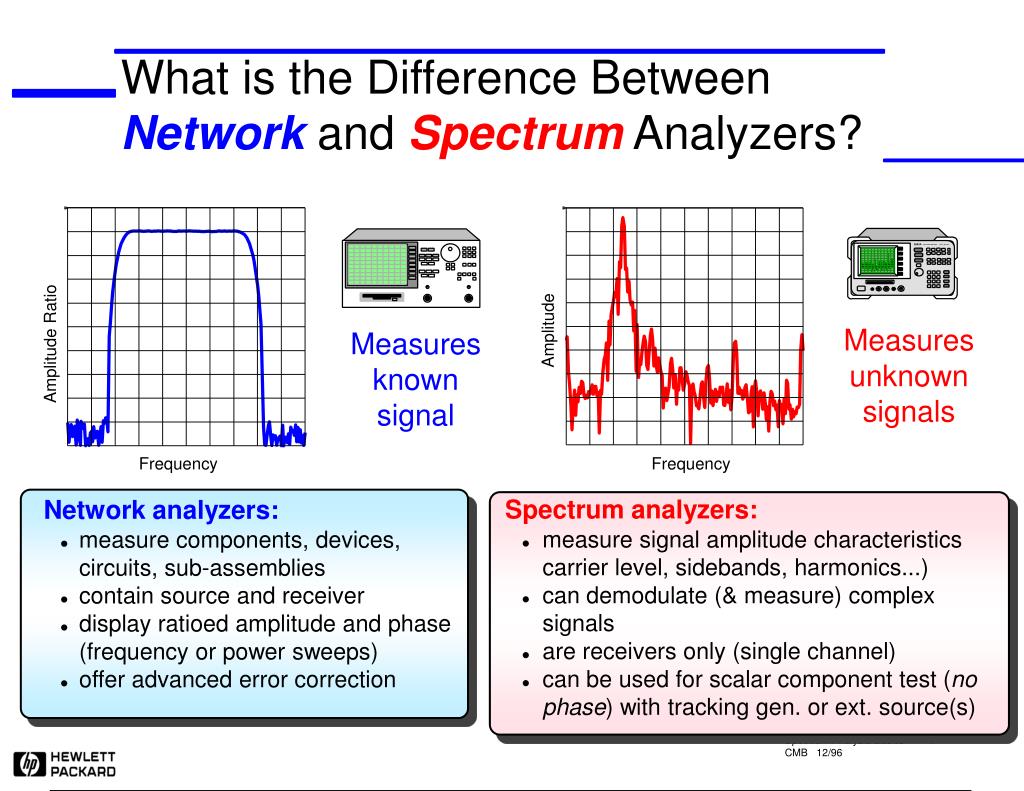

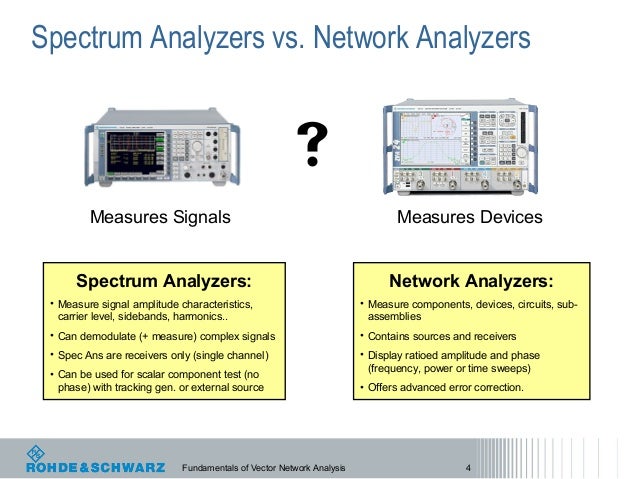

VNA vs Spectrum Analyzer: A Comparative Glance
The VNA excels in characterizing the behavior of circuits and components, while the Spectrum Analyzer is more suited for identifying and measuring signals in the frequency domain. The choice between the two instruments depends heavily on the specific measurement requirements.
For instance, if you need to troubleshoot a faulty amplifier, you would likely use a Spectrum Analyzer to identify any unwanted signals or distortions. However, if you need to optimize the impedance matching of an antenna, you would use a VNA to measure its reflection coefficient.
In short, the Spectrum Analyzer is all about *what's there*, the VNA is about *what it does*.
Conclusion
In conclusion, the Vector Network Analyzer and the Spectrum Analyzer are two essential tools that serve distinct yet complementary purposes in RF engineering. The Spectrum Analyzer paints a picture of the frequency spectrum, while the VNA meticulously characterizes the behavior of electrical networks.
As RF technology continues to advance, these instruments will undoubtedly remain indispensable for engineers seeking to design, test, and optimize the next generation of wireless devices and communication systems.
Mastering both tools opens doors to a deeper understanding of the invisible world of radio frequencies, enabling innovation and progress in countless fields.
